Product Overview

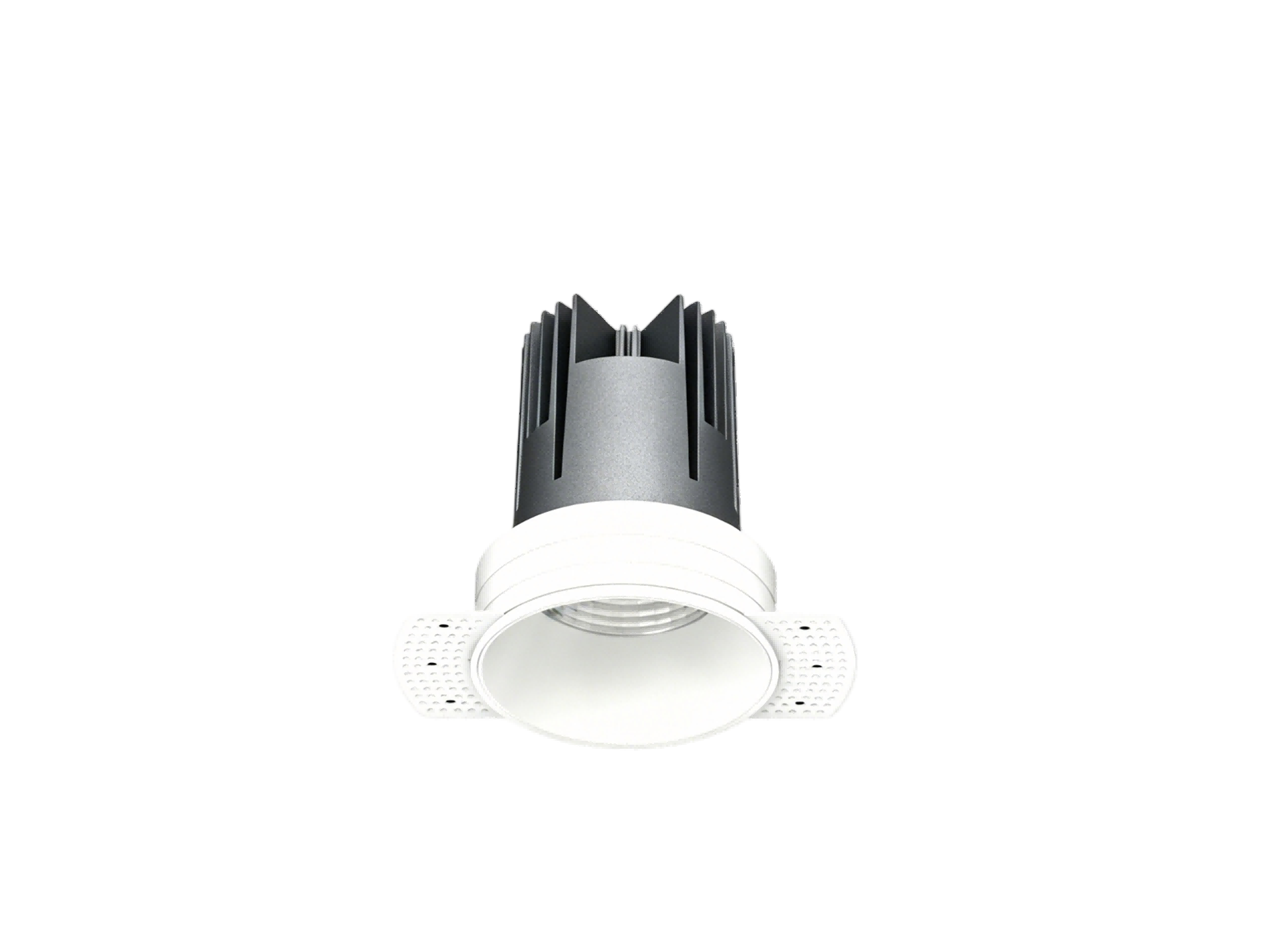

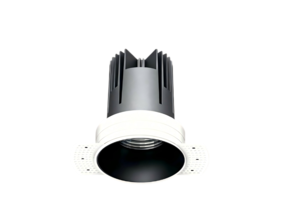

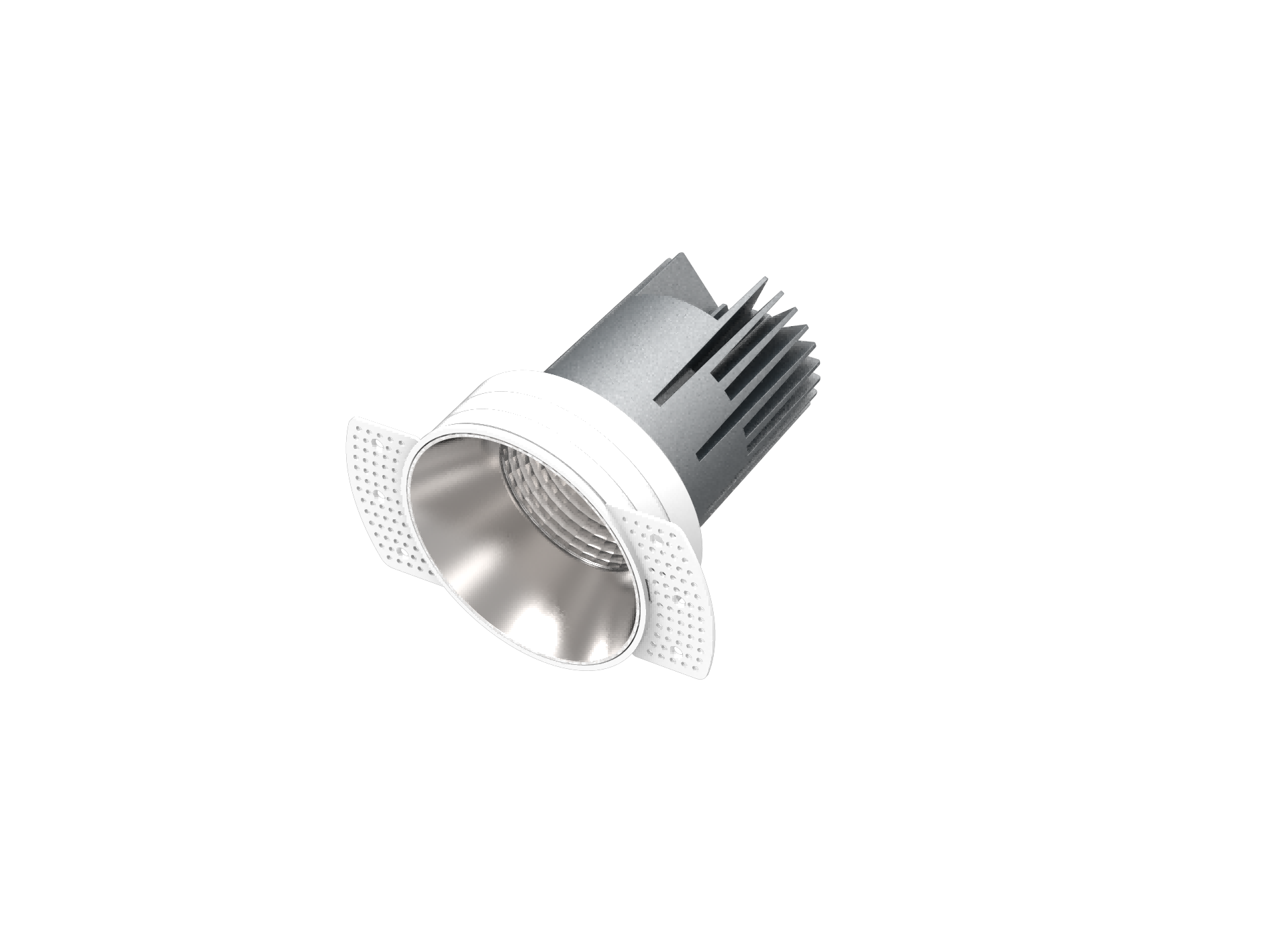

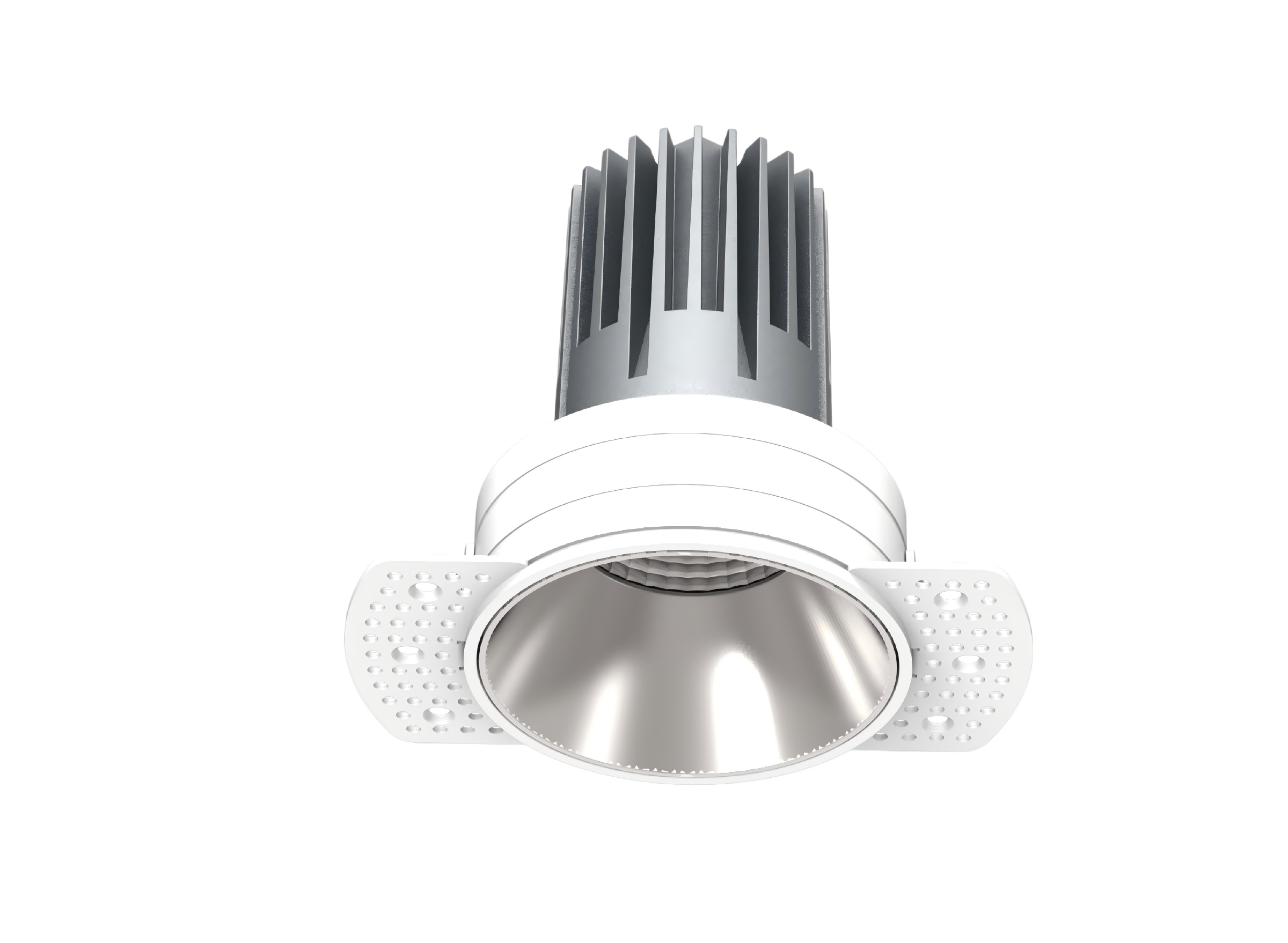

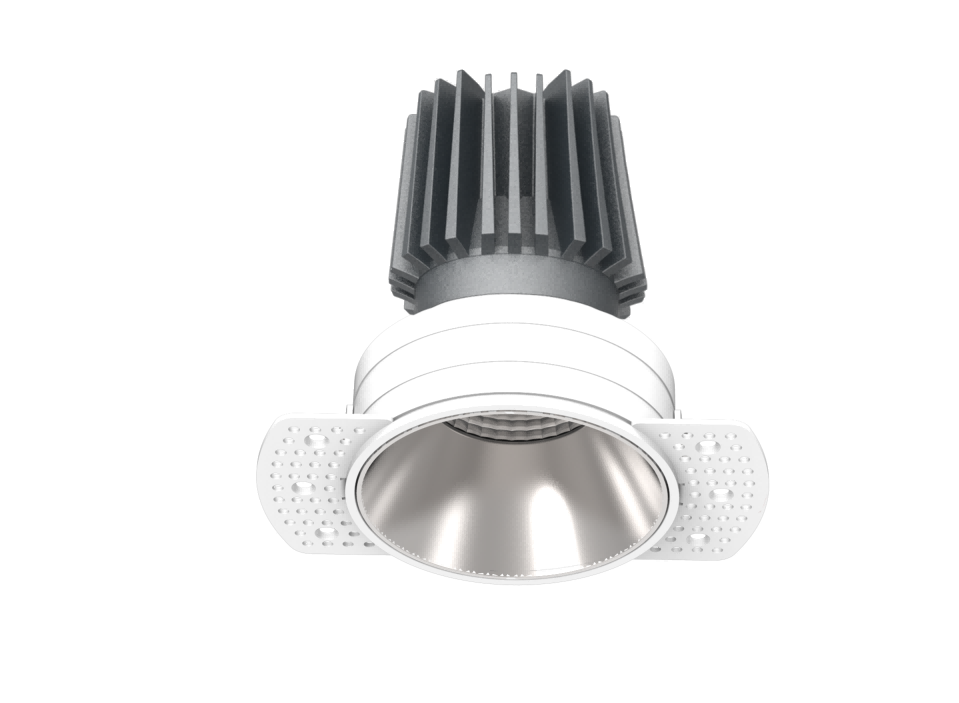

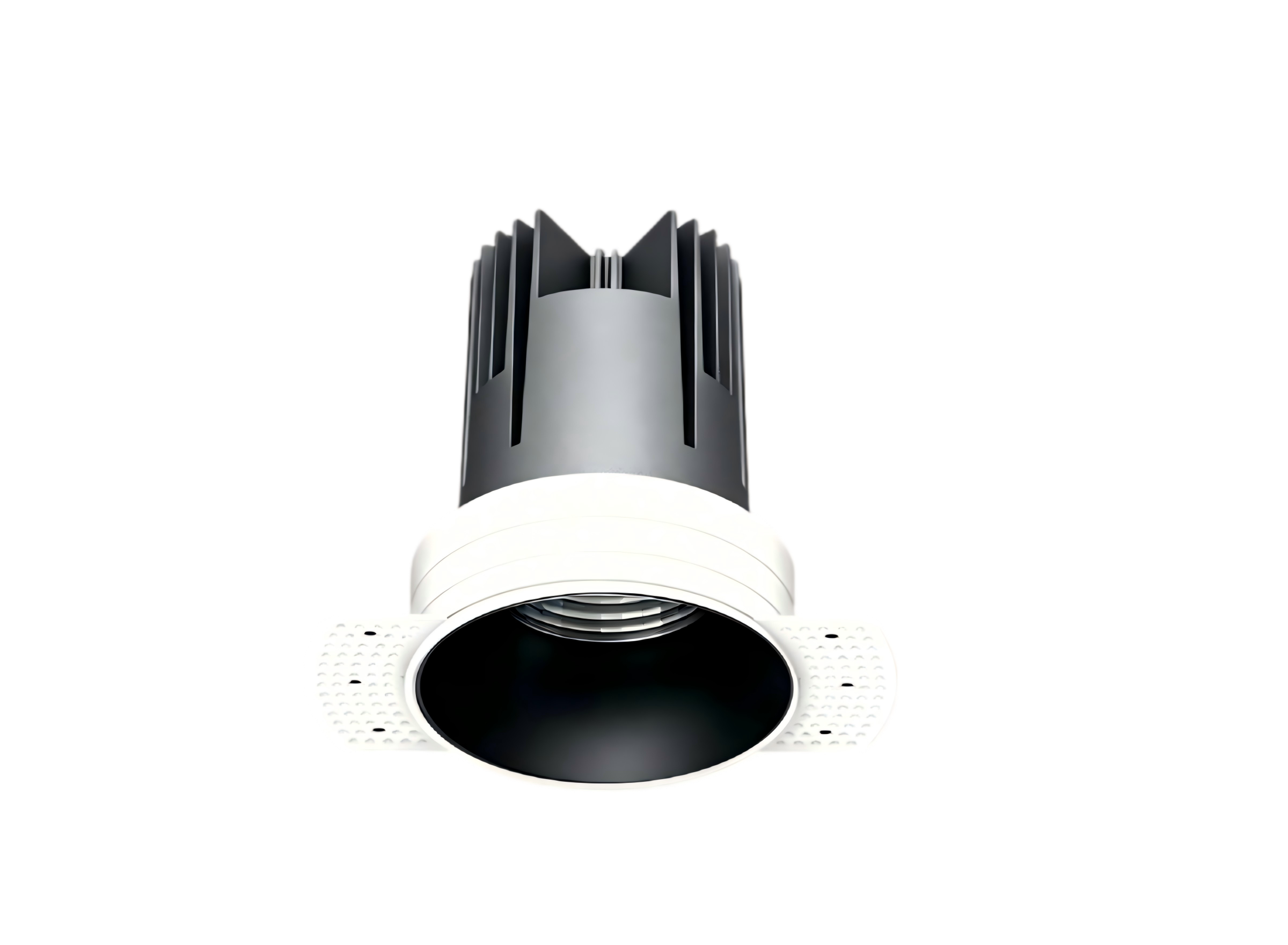

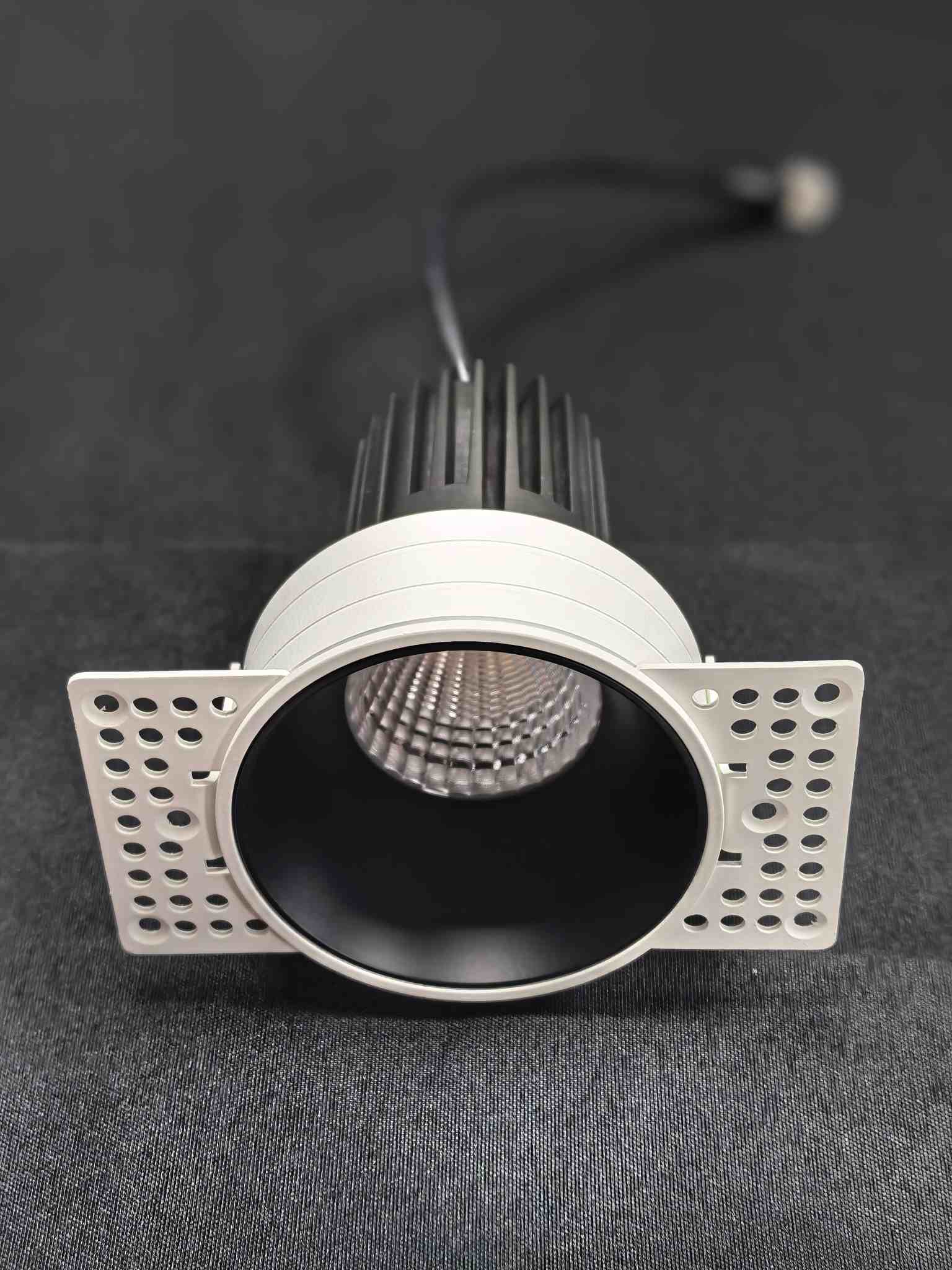

This high-power LED Trimless Frameless Downlight is a upgraded large-size version of our classic frameless downlight series. Featuring seamless plaster-in installation, it creates a borderless, clean ceiling lighting effect, ideal for large-space commercial and high-end residential projects in Europe, UK, Italy and Dubai.

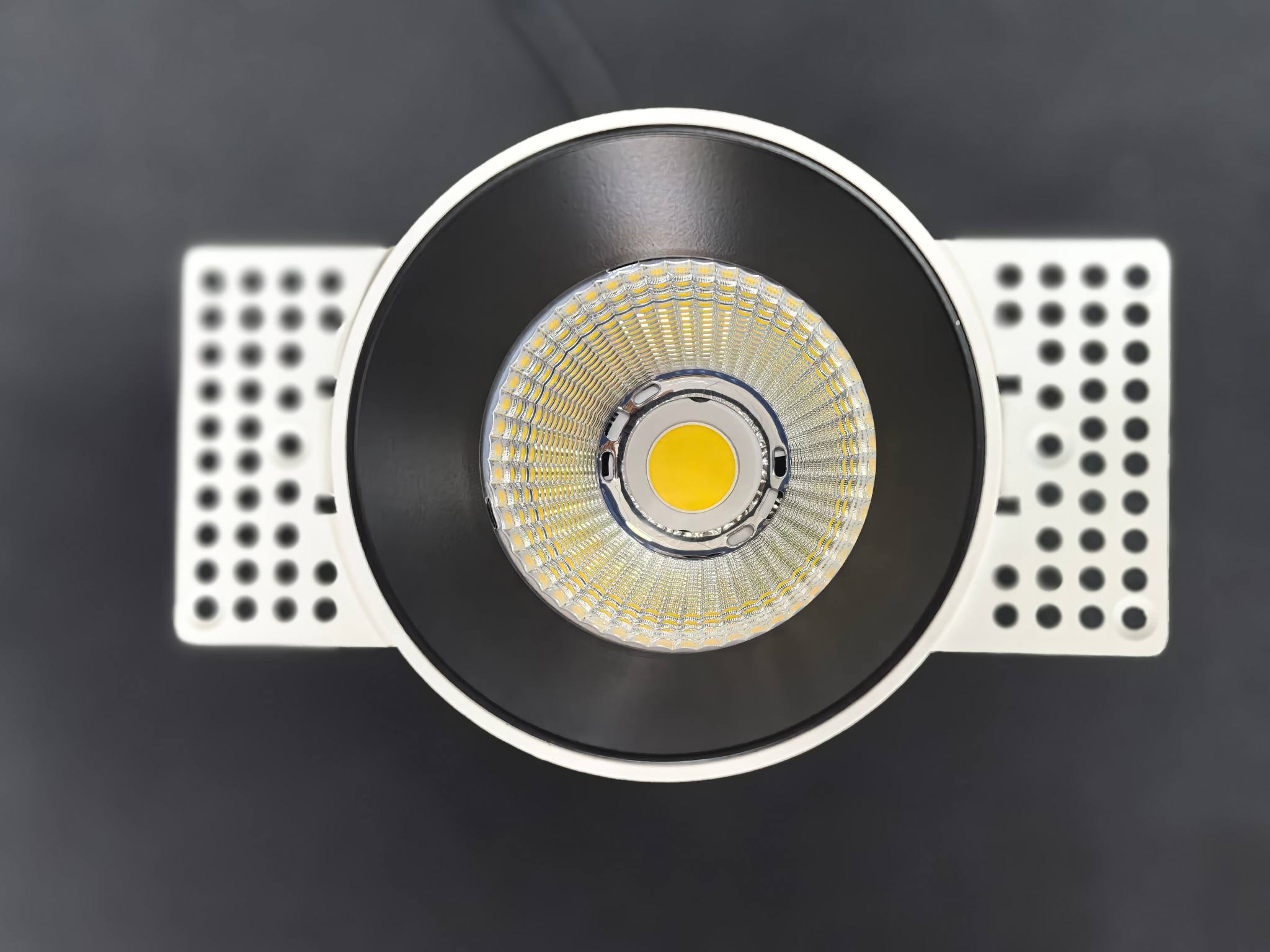

Equipped with premium COB LED chips, this recessed downlight delivers stable high-lumen output and excellent color rendering. With IP20/IP44/IP65 optional protection grades and full dimmable function, it adapts to diverse indoor environments and meets modern architectural lighting standards.
Key Features
Borderless Frameless Design: Seamless ceiling integration, invisible trimless look for minimalist interior decoration
High Power Performance: 12W–30W power range, high luminous efficiency for large area lighting
Premium Anti-glare Lighting: UGR＜16, flicker-free, comfortable eye-protective illumination
Multi Waterproof Grade: IP65 waterproof optional, suitable for dry and damp areas
High CRI Rendering: CRI 80/90/97 optional, restore true object color
Tool-free Installation: Zinc alloy spring clip design, fast mounting and easy maintenance
Full Dimming Support: 0-10V dimmable, compatible with European standard lighting systems

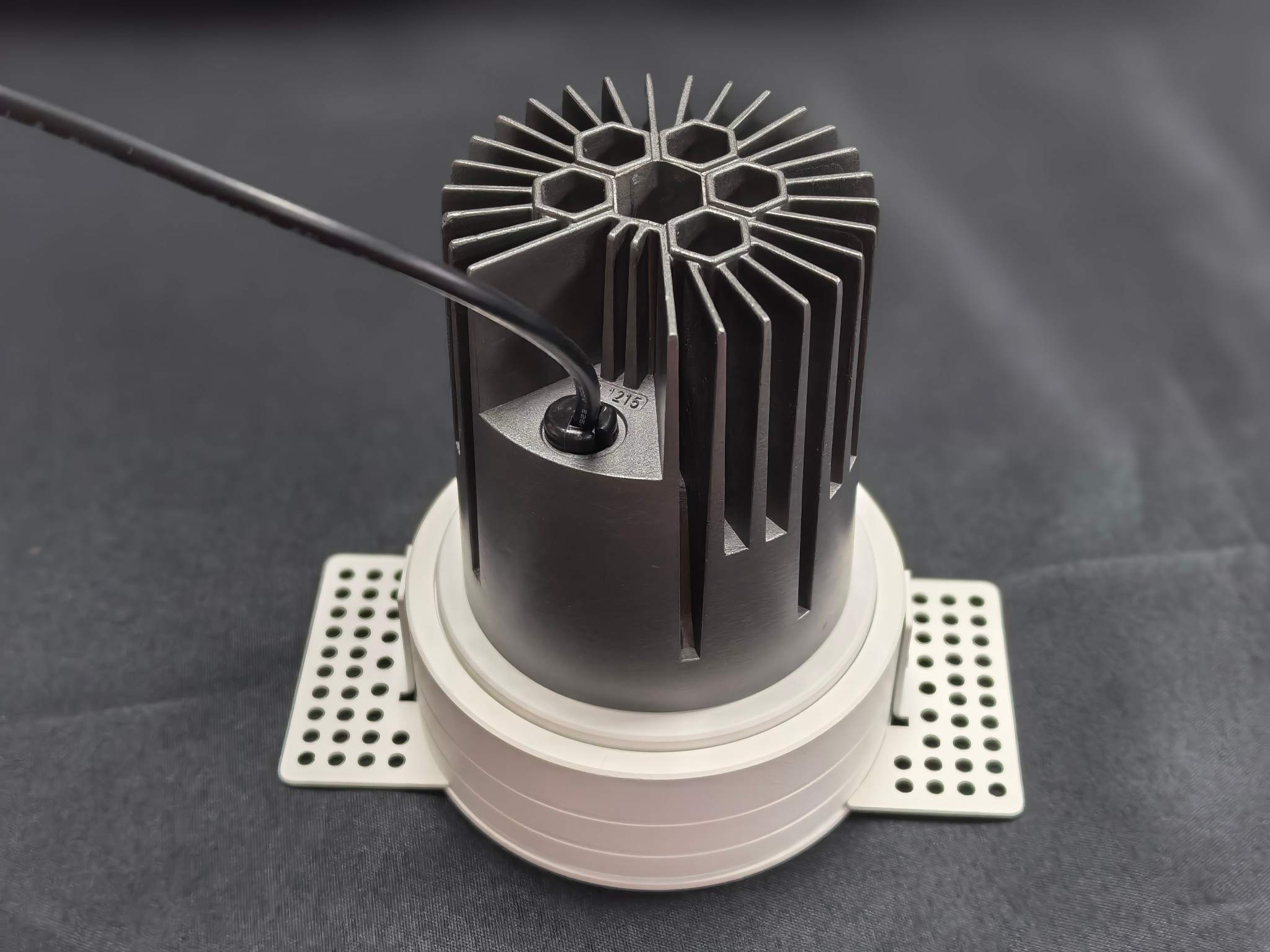

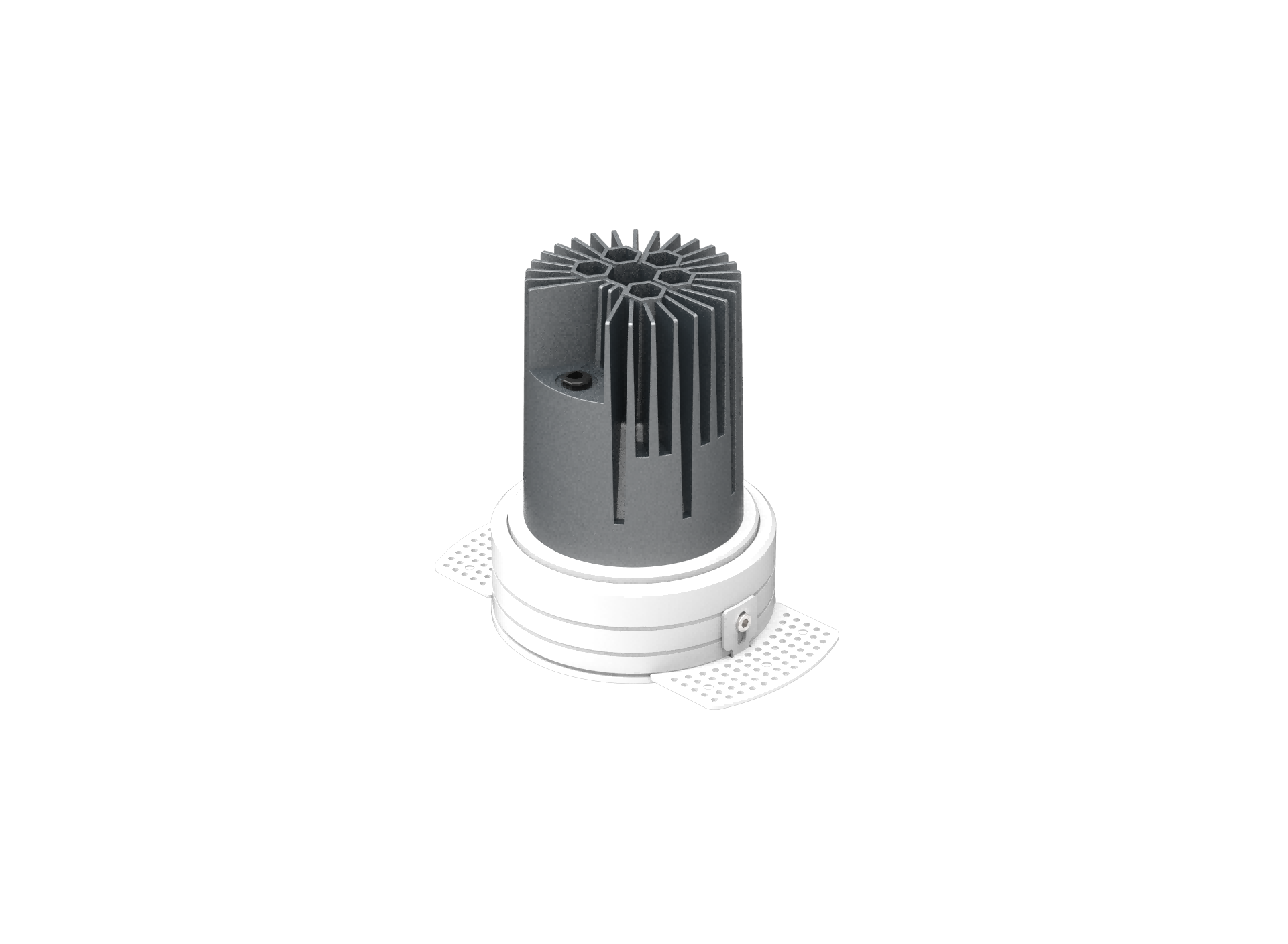

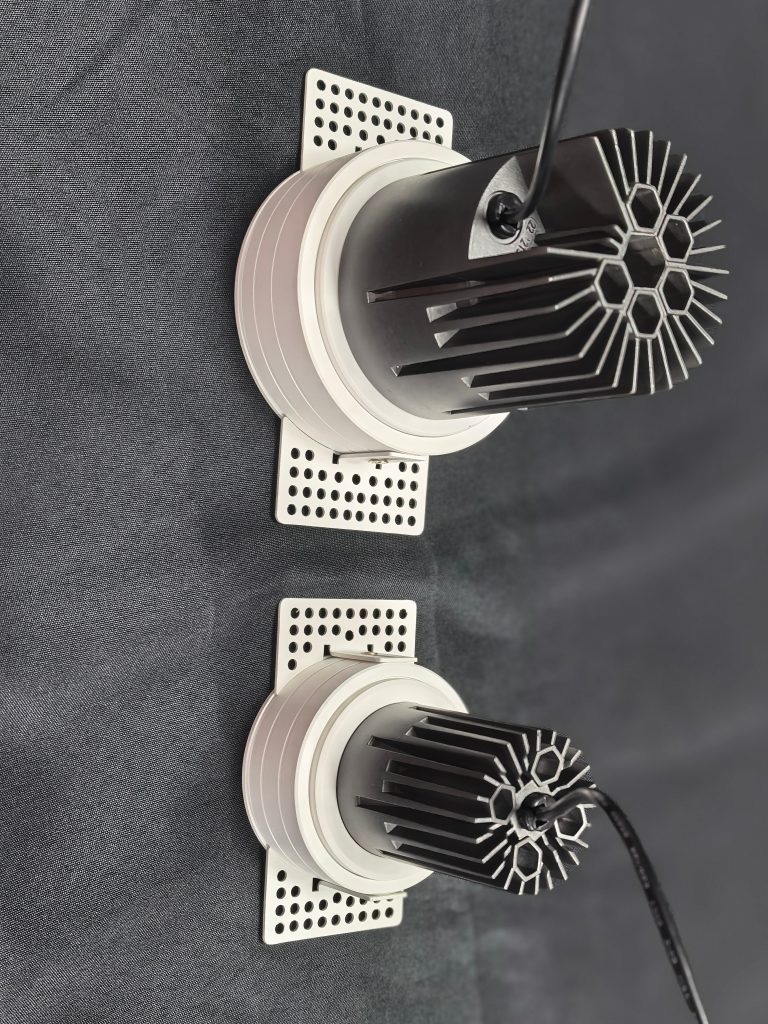

Durable Die-cast Aluminum Body: Great heat dissipation, 50000hrs long lifespan
Technical Specifications
表格
| Specification | Details |
|---|
| Power | 12W / 15W / 20W / 25W / 30W |
| Lumen Efficacy | 95–105 lm/W |
| Beam Angle | 15° / 24° / 36° / 60° |
| CCT | 2700K / 3000K / 4000K / 5000K |
| CRI | 80 / 90 / 97 |
| LED Chip | Citizen / Bridgelux / Philips COB |
| Dimming | 0-10V Dimmable |
| Voltage | 220–240V 50/60Hz |
| IP Rating | IP20 / IP44 / IP65 |
| Cutout Size | Ø90mm / Ø105-110mm |
| Material | Die-Cast Aluminium |
| Lifespan | 50,000hrs (L80B10) |
| Warranty | 3-5 Years |
| UGR | ＜16 |

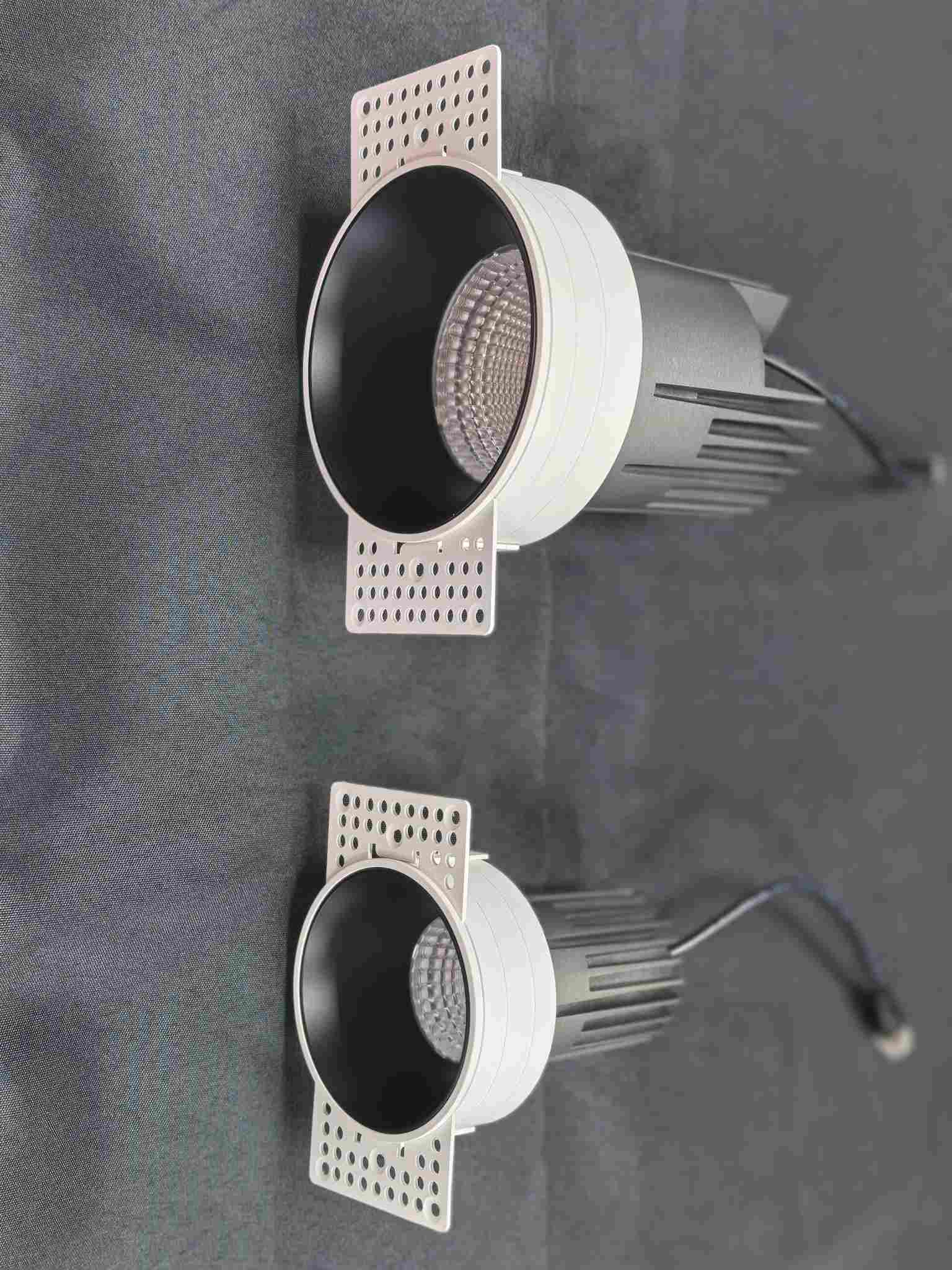

Product Variants
| Order Code | Power | Cutout Size | Product Size | Beam Angle |
|---|
| HC35-A2-FR | 12W/15W | Ø90mm | Ø90×H106mm | 15°/24°/36°/60° |
| HC04-A2-FR | 20W/25W/30W | Ø105-110mm | Ø126×H113mm | 15°/24°/36°/60° |
| HC35-A2-AR | 12W/15W | Ø90mm | Ø90×H104mm | 15°/24°/36°/60° |
| HC04-A2-AR | 20W/25W/30W | Ø105-110mm | Ø126×H113mm | 15°/24°/36°/60° |
Application Scenarios
This high-power frameless trimless downlight is widely used for high-end projects in Europe and Middle East:
Luxury villas & high-end residential interiors
Hotel lobbies, guest rooms & resorts
Commercial offices & meeting rooms
Retail stores, exhibition halls & art galleries
Damp area lighting (IP65 version)
OEM & Custom Service
We provide full OEM service for commercial projects:
Custom logo, custom reflector finish
Custom CCT, CRI, beam angle
Custom dimming solution for project requirement
Bulk order support for contractors, lighting distributors, project specifiers
