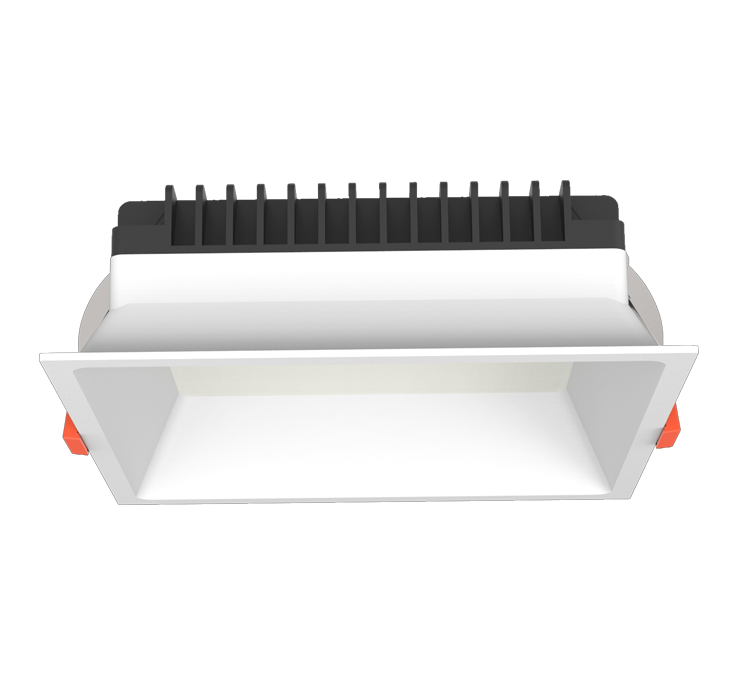

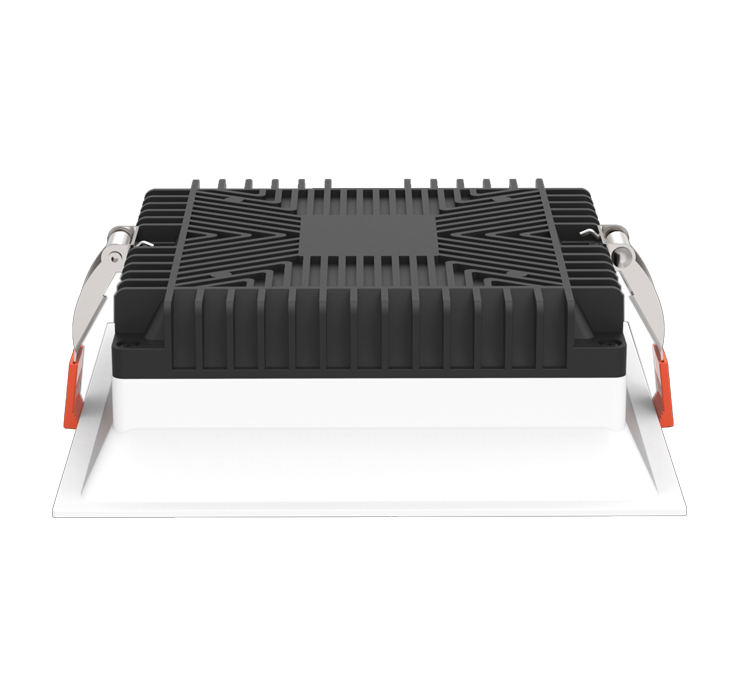

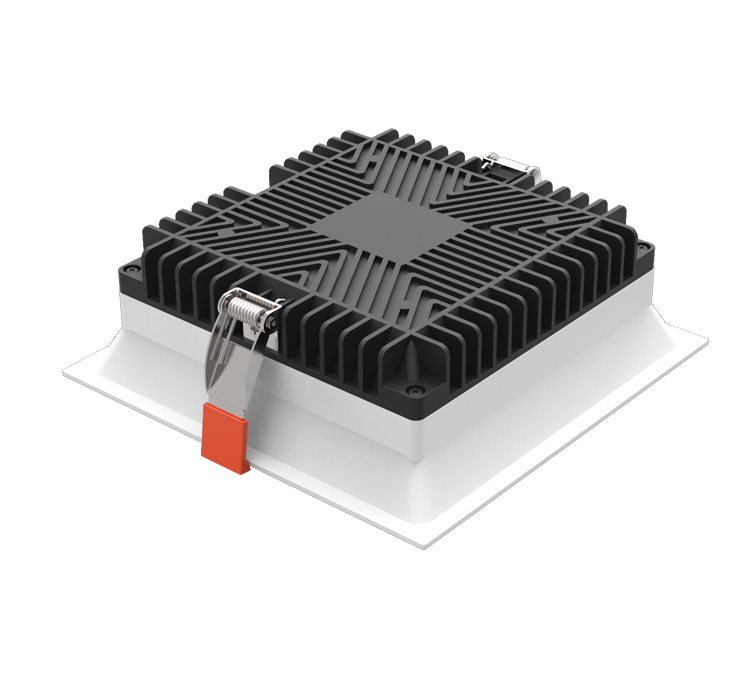

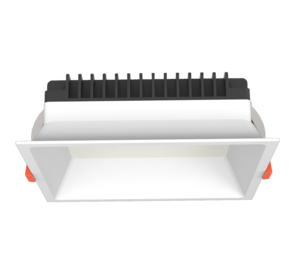

P3 4/5/6inch Square Recessed Downlight Fixture 7W-30W


|
Model Code : HD04/05/06-P3-DS
 Reservation Now
Spec


Description

The P3 4/5/6inch Recessed Downlight Fixture (7W-30W) offers an ideal solution for high-quality, energy-efficient lighting in residential and commercial spaces. With a sleek and modern design, these LED downlights seamlessly blend into ceilings, providing uniform, bright lighting while consuming minimal energy.

Available in three sizes – 4, 5, and 6 inches – and offering wattage options from 7W to 30W, the P3 Recessed Downlight provides flexibility for any lighting requirement. Whether you need accent lighting for your home, general illumination for your office, or efficient lighting for a retail or commercial space, these downlights deliver the perfect solution.

The P3 recessed downlights are designed with precision to offer exceptional lighting performance, high color rendering, and long lifespan. Their versatility and superior construction make them the ideal choice for any modern interior, from stylish homes to professional office environments.


Technical Specifications

FeatureDetails
Light SourceSamsung LED / Sanan SMD
Lumen Efficiency90-110 lm/W
Wattage Options5W / 7W / 10W / 15W / 20W / 25W / 30W / 40W
Beam Angle90°
CCT2700K – 6000K
CRI80 / 90
MaterialDie-cast Aluminium
Cut-out SizesØ80, Ø110, Ø146, Ø167, Ø200, 102×102, 136×136, 160×160 mm
Dimensions

D90×H45, D119×H53, D154×H53, D220×H53,

L110×W110×H50, L145×W145×H50, L170×W170×H50

IP RatingIP20
UGR RatingUGR < 22
Dimming Options0-10V dimmable
CertificationCE, RoHS, LED Quality OK, IK08
Lifespan>50,000 hours
Warranty3-5 years



Selling Points

1.Narrow Trim,Better looking than regular downlight in the market;


2.Samsung chip,better lumen output;


3.Super Anti-glare Design,more comfortable lighting;


4.Quality clips(Spring)design;
