Product Detail

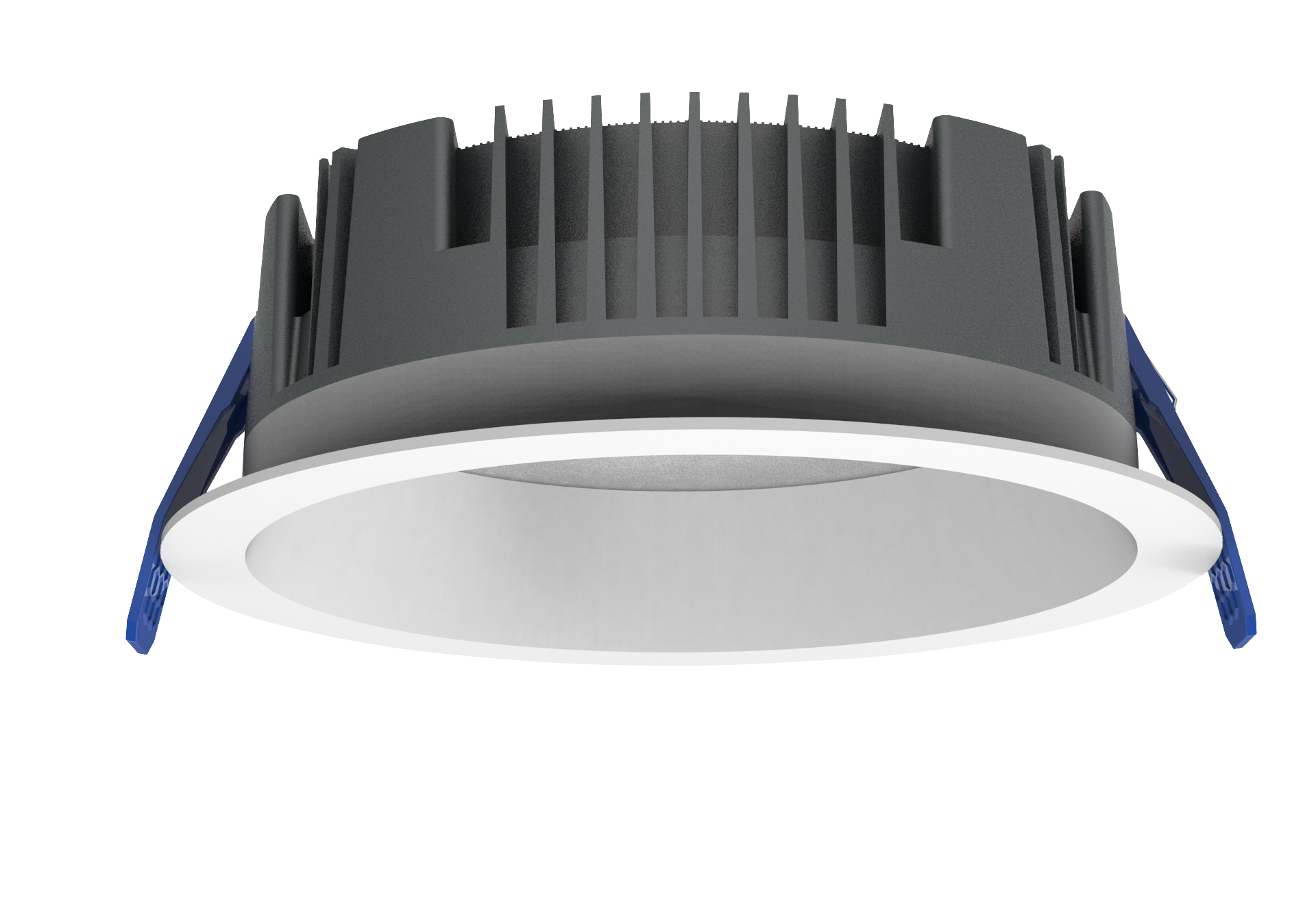

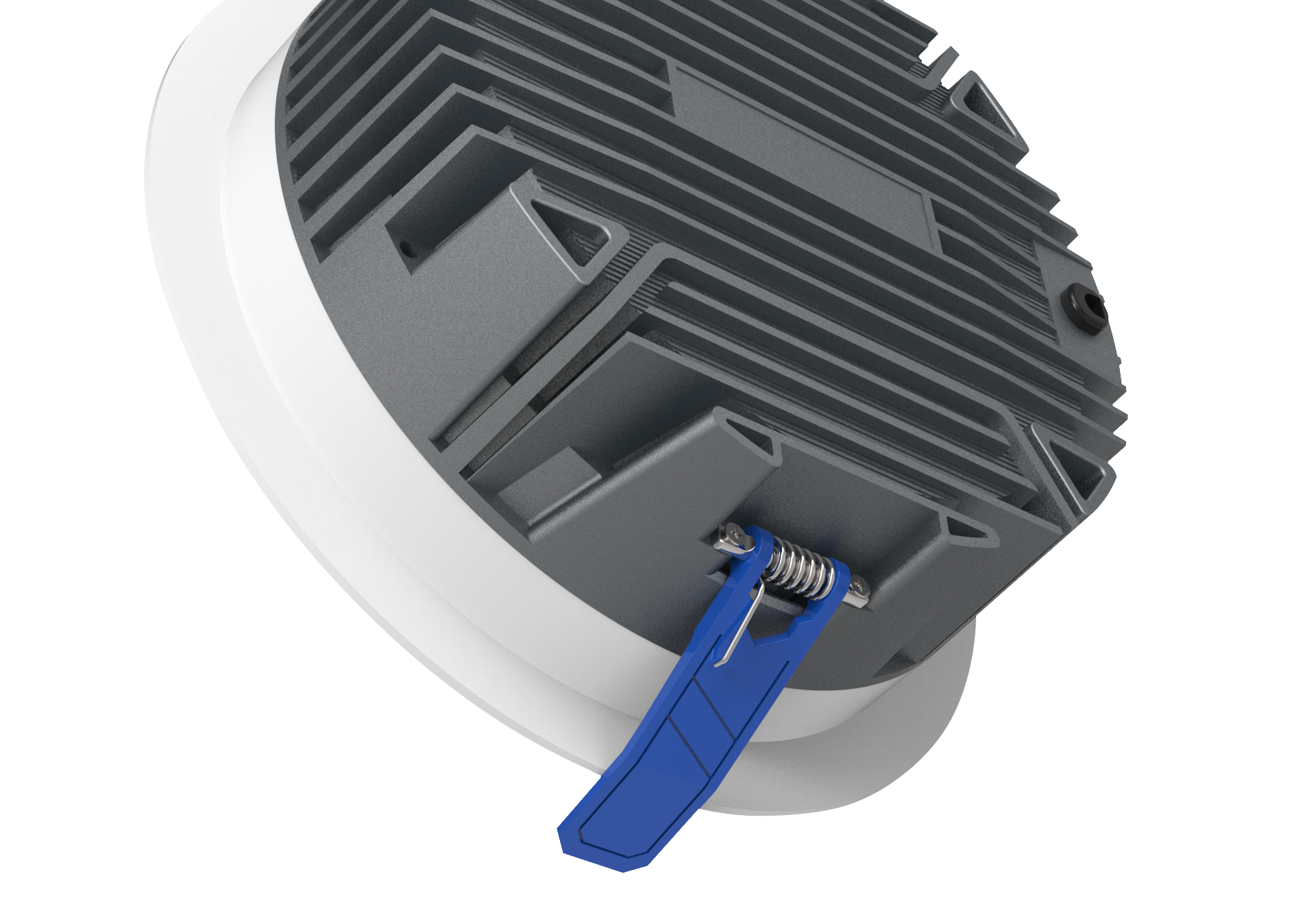

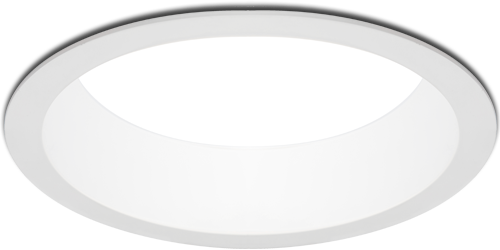

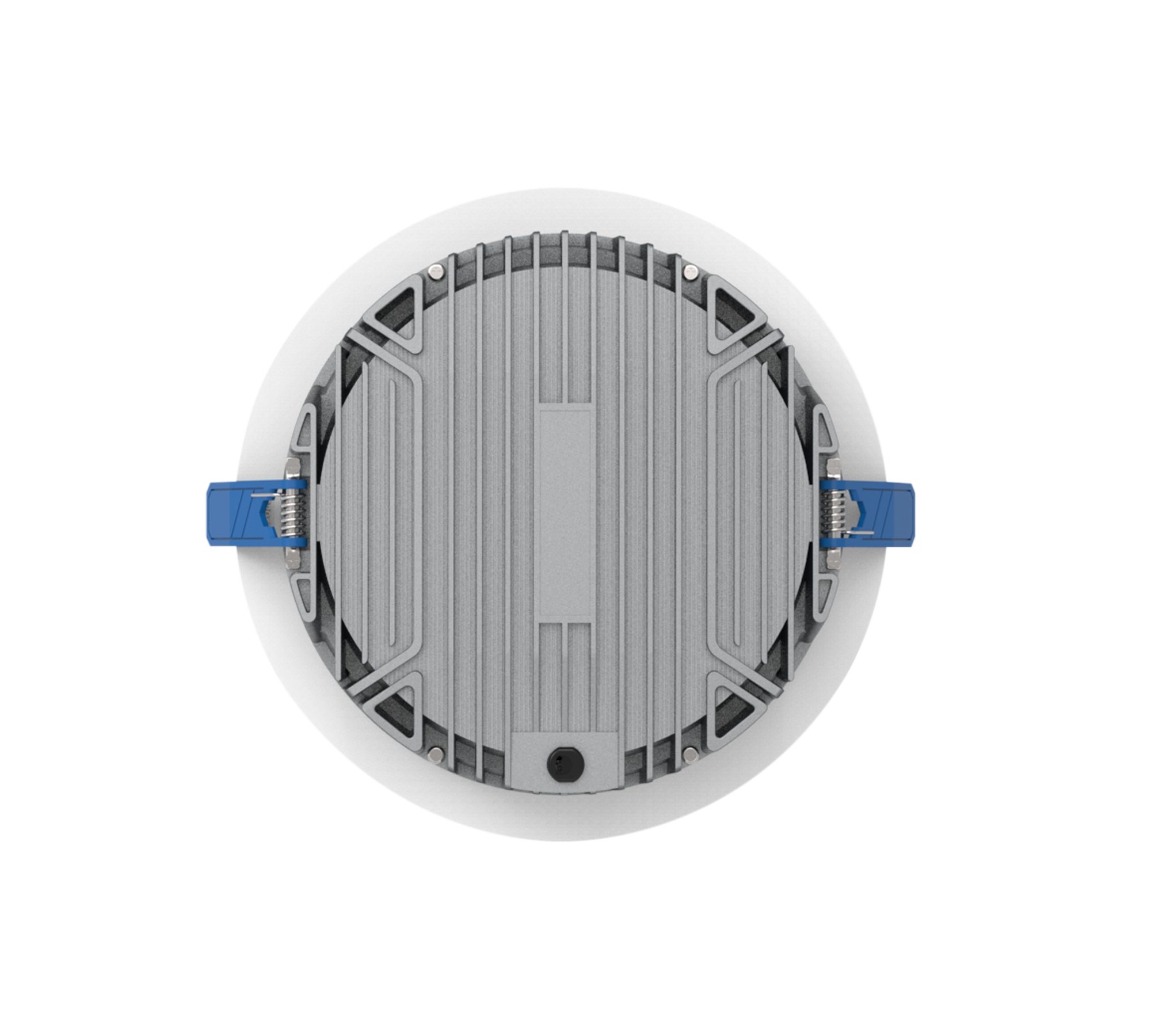

P1 6/8inch Quickwire Downlights 20W-40W


IP65 Low Profile Recessed LED Ceiling Lights – Ideal for Bathrooms, Garages & Outdoor Spaces
|
Model Code : HD06/08-P1-DR
 Reservation Now
Spec


Description

The P1 6/8inch Quickwire Downlights 20W-40W offer an innovative and energy-efficient lighting solution for modern spaces. Designed with quick installation features, these recessed LED downlights provide superior brightness and long-lasting performance. Whether you're illuminating a home, office, or commercial environment, the P1 downlights are perfect for a wide range of applications.

With advanced LED technology, the P1 Quickwire Downlights offer a highly efficient lighting solution that reduces energy consumption without compromising on light quality. The range of wattages (20W, 30W, and 40W) ensures flexibility, catering to different room sizes and lighting needs.


Technical Features

  • LED Chip: Samsung LED/ Sanan SMD/ Citizen COB / Bridgelux COB / Philips COB

  • Material: Die-cast Aluminum

  • System Lumen: 90-110 lm/W

  • Beam Angles: 60°, 90°

  • Cutout Sizes: Ø90mm to Ø200mm

  • Color Temperatures: 2700K, 3000K, 4000K, 5000K, 6000K

  • CRI Options: 80 / 90 / 97

  • IP Rating: IP20 / IP44 / IP65

  • Flicker-Free, 0-10V dimmable, IK protection, CE / RoHS certified

  • Lifespan: >50,000 hrs

  • Warranty: 3–5 years


Variants Available

Order CodeWattageBeam AngleCutoutSize (mm)
HD03-P1-RR7/10/15W60°Ø90Ø106×H42
HD04-P1-RR10/15/20W60°Ø120Ø142×H50
HD06-P1-RR20/25/30W60°Ø160Ø180×H60
HD08-P1-RR30/35/40W60°Ø200Ø230×H65
HD08-P1-DR30/35/40W90°Ø200Ø230×H65


Data


Power(X):20W/25W/30W; 30W/35W/40W
LED Chip:Citizen Ra90
Beam Angle:90deg
Size:180mm*60mmH; 230mm*65mmH
Cutout:160mm; 200mm
Driver certification:ENEC CE CB SAA
Material:Die-casting aluminum
PF>0.9Flicker FREE
THD<10
Lifetime:50000hrs


Selling Points

1.Patent product,strongly industry smell design,makes industry beauty;


2.Samsung chip,better lumen output;


3.Perfect heat dissipation,SMD version wattage can go to 40W;


4.IP44/IP65 available;


5.Anti-glare design,always makes comfortable lighting.
