Product Detail

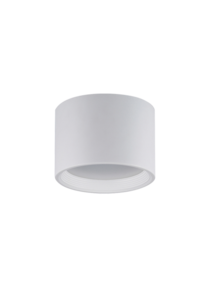

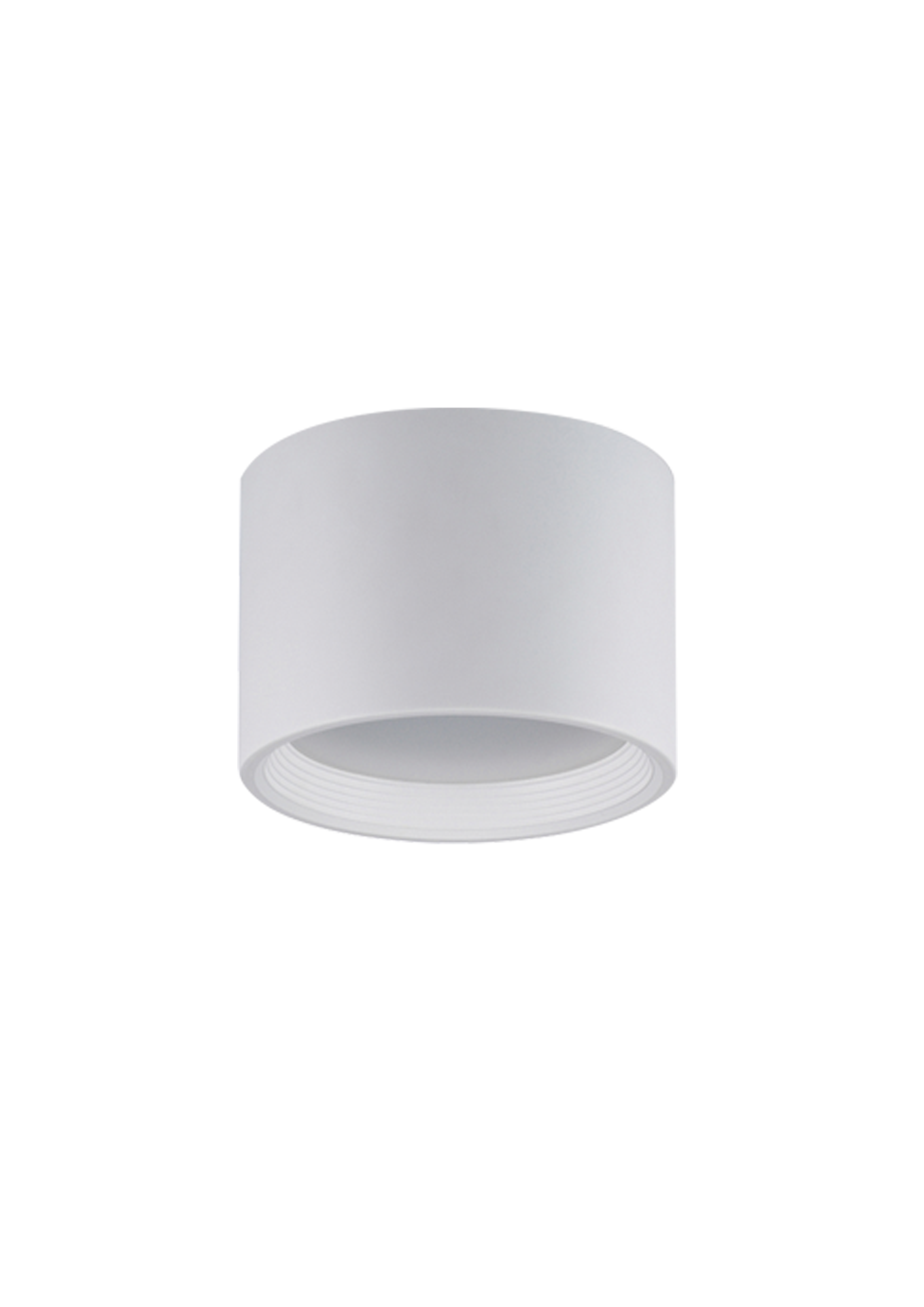

M1 SMD LED ceiling light 10W-30W


The M1/M2 surface mounted LED downlight is ideal for modern commercial interiors, including retail shops, offices, and hospitality venues.
|
Model Code : HM-M1-D
 Reservation Now
Spec

Description

The M1/M2 Series offers a modern and minimalist LED surface-mounted and suspended downlight solution designed for commercial and architectural applications. With both round and square housing options, the M1/M2 range delivers efficient and focused lighting, making it ideal for retail stores, offices, hospitality venues, and public spaces.

Available with Samsung SMD or Citizen/Bridgelux/Philips COB LED options, this downlight series ensures stable performance, excellent light quality, and high system efficacy up to 100lm/W. Beam angle choices of 60° or 90° suit a variety of ambient and accent lighting needs.


Key Features

FeatureDescription
InstallationSurface-mounted or pendant-mounted
LED SourceSamsung LED / Sanan SMD / Citizen COB / Bridgelux COB / Philips COB
Housing MaterialAluminium
Power Options7W / 10W / 15W / 20W / 25W / 30W
Beam Angles60° / 90°
CCT Range2700K / 3000K / 3500K / 4000K / 5000K
CRI80 / 90 / 97
Dimming Support0-10V / Triac / DALI (optional)
System Lumen90–100 lm/W
CertificationsCE, RoHS
IP RatingIP20 (Indoor use)
UGR<19 (low glare)
Lifetime50,000h, 5-year warranty

Product Code Examples

Order CodePowerBeam AngleSize (mm)CCT Range
HM04-M1-D10/15W90°Ø130×H1002700K–5000K
HM08-M1-D25/30W90°Ø195×H1302700K–5000K
HM08-M2-R20/30W60°L151×W151×H1422700K–5000K
HM06-M2-R15/20W60°L121×W121×H1212700K–5000K

Custom sizes and dimming options available on request.


✦ Application Areas

  • Retail stores

  • Offices & coworking spaces

  • Restaurants & cafes

  • Museums & galleries

  • Hospitality environments

  • Public areas and corridors


✦ Optional Accessories

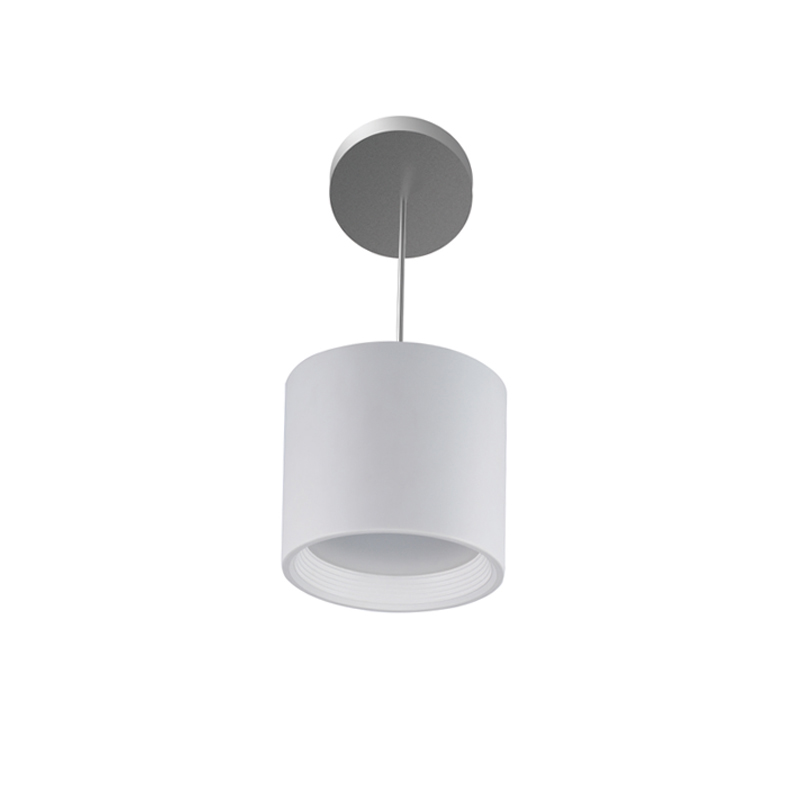

  • Pendant rod for suspended mounting

  • Honeycomb louver

  • Frosted lens for soft diffused lighting


Selling Points

1.Good looking,no holes can be seen when installing in the ceiling;

2.Citizen/Philips chip,better lumen output;

3.Power from 7W to 30W option;

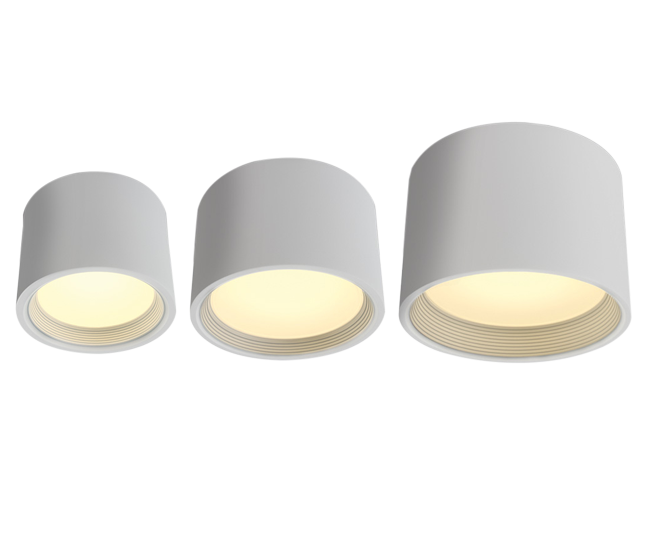

4.Size from 4inch to 8inch wide range.
